About Hoist

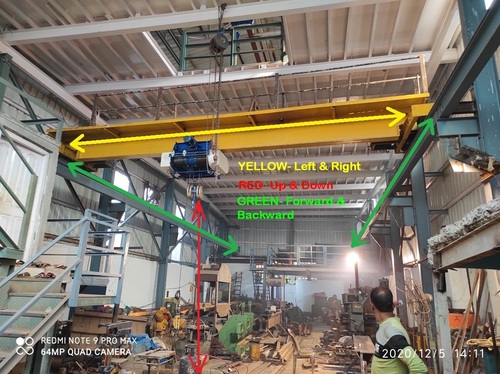

A hoist wire rope hoist is a mechanical device used to lift and move heavy loads using a wire rope as the lifting medium. It is widely used in industrial applications, such as factories, construction sites, shipyards, and warehouses.

Key Components:

1. Wire Rope: Strong steel rope wound around a drum. Offers high strength and flexibility.

2. Drum or Sheave: The cylinder on which the wire rope is wound.

3. Motor: Electric (AC/DC) or pneumatic motor to drive the drum and lift the load.

4. Gearbox: Reduces speed and increases torque.

5. Brake System: Ensures safety by holding the load when lifting stops.

6. Hook or Lifting Attachment: Connects the hoist to the load.

7. Frame or Housing: Encloses and supports all the components.

8. Limit Switches: Prevent over-travel of the hook (top and bottom).

9. Control System: Pendant control, radio remote, or automated system.

Types of Wire Rope Hoists:

• Electric Wire Rope Hoist: Most common; powered by electricity.

• Manual Wire Rope Hoist: Operated by hand (rare with wire rope, more common with chains).

• Air (Pneumatic) Wire Rope Hoist: Used in explosive or remote environments.

Advantages:

• Can lift very heavy loads (up to 100+ tons).

• Suitable for high-lift heights.

• Wire ropes are durable and resistant to wear.

• Offers fast lifting speeds.

Safety and Maintenance Tips:

• Regularly inspect the wire rope for fraying or corrosion.

• Lubricate moving parts and rope.

• Check for proper hook alignment and brake function.

• Never exceed the rated load capacity.

• Ensure limit switches are working correctly.
