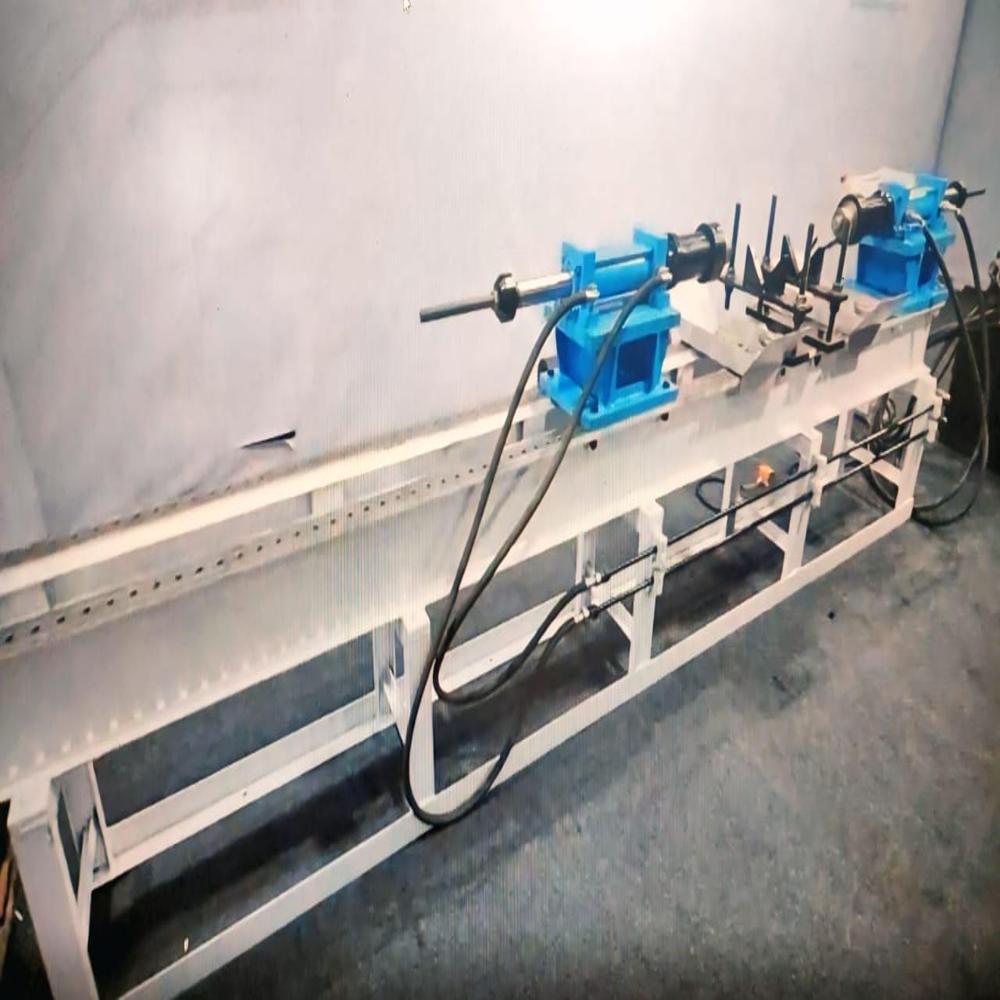

Horizontal Bearing Pushing Machine For Conveyor Idler

About Horizontal Bearing Pushing Machine For Conveyor Idler

A Horizontal Bearing Pushing Machine for Conveyor Idlers is a hydraulic press system designed to insert or remove bearings and seals into the ends of a conveyor idler pipe while the roller is positioned horizontally.

This setup is widely used in conveyor idler manufacturing plants and repair workshops because the horizontal orientation makes it easy to load long or heavy rollers and maintain precise alignment.

---

Key Features

• Horizontal Layout Idler pipe rests on fixtures/rollers for easy loading.

• Single-End or Double-End Operation:

  • Single-End Press: One bearing at a time.

  • Double-End Press: Both ends pressed simultaneously faster & perfectly aligned.

• Hydraulic Power Available in 20T to 100T capacities depending on idler size.

• Custom Dies & Fixtures Designed for different idler pipe diameters and bearing types.

• Alignment System Ensures concentric pressing to avoid damage.

• Semi-Automatic / Fully Automatic Models With optional PLC for large-scale production.

---

Applications

• Conveyor Idler Manufacturing Plants For high-volume roller assembly.

• Mining, Steel, Cement, Power Plants Where thousands of idlers are used daily.

• Maintenance Workshops For quick replacement of worn-out bearings.

---

Advantages

• Ideal for Long/Heavy Idlers Easier to handle horizontally than vertically.

• Faster Production Especially in double-end models.

• Accurate Fitment Extends bearing and idler roller life.

• Safe & Damage-Free Eliminates hammering or heating methods.

• Customizable Tonnage, stroke, and tooling tailored to your requirement.

---

Example Technical Specification (Horizontal Double-End Model)

• Machine Type: Horizontal Hydraulic Bearing Pusher

• Capacity: 50 Ton (25T each side, customizable up to 100T)

• Stroke Length: 150300 mm

• Max Pipe Size: Up to 325 mm OD (customizable)

• Operation: Electric hydraulic pump with control panel

• Cycle Time: 1015 seconds per idler

• Accessories:

  • Bearing/seal pressing dies

  • Idler alignment & clamping fixture

  • Optional PLC for automation

Efficient, Dual-Mode Operation

This horizontal bearing pushing machine offers the flexibility of semi-automatic and manual modes, allowing users to choose optimal control for bearing fitting applications. The integrated advanced PLC system streamlines operations while maintaining precision and repeatability. With adjustable cycle times and rapid cylinder movement via a pre-fill valve, every bearing is fitted according to desired specifications.


Engineered for Safety and Durability

Robustly constructed with a heavy-duty steel welded frame, the machine prioritizes workplace safety and longevity. Features such as an emergency stop, overload protection, two-hand safety controls, and a hydraulic pressure gauge ensure operations are secure and reliable under demanding production conditions, making it ideal for continuous industrial use.


Suited for High-Volume Idler Production

Capable of handling up to 100 idlers per hour, this machine is built for efficiency. Its precise proportional valve and high-performance solenoid valve guarantee accurate force application, while the spacious working table (500 mm x 350 mm) accommodates a wide range of idler roller sizes. Whether as a manufacturer, distributor, or fabricator, you can rely on consistent, high-output bearing assembly.
